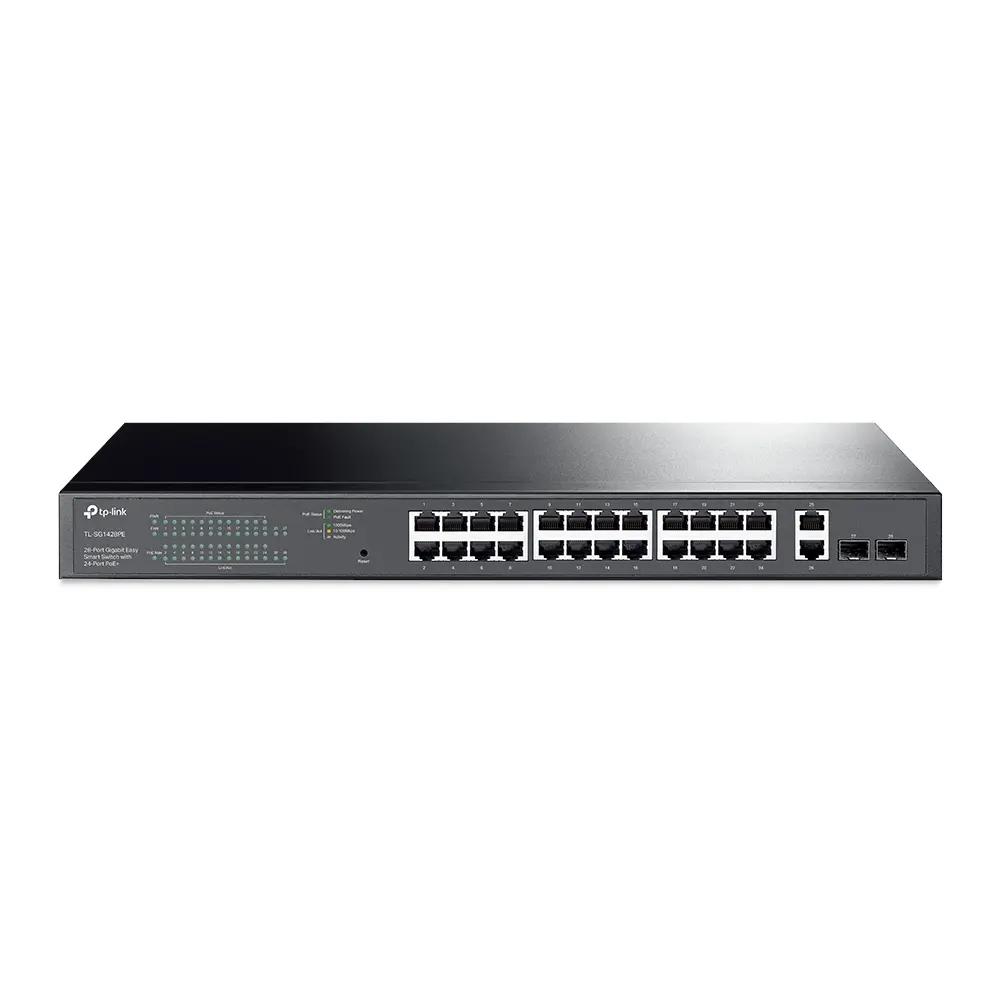

tp-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ | TL-SG1428PE
24 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
- PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
HARDWARE FEATURES Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1pInterface 26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP PortsNetwork Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMFFan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC, 50/60 Hz PoE Ports (RJ45) Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 WDimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in
(440 × 220 × 44 mm)Mounting 19" 1U rack mountable Max. Power Consumption 27 W (no power device connected)
304.7 W (with 250W power device connected)Max Heat Dissipation 92.1 BTU/h (no PD connected)
1,039.0 BTU/h (with 250 W PD connected)PERFORMANCE Switching Capacity 56 Gbps Packet Forwarding Rate 41.7 Mbps MAC Address Table 8K Packet Buffer Memory 4.1 Mbit Jumbo Frame 9 KB SOFTWARE FEATURES Quality of Service Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm ControlL2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto RecoveryVLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLANManagement Features Web-Based GUI
Easy Smart Configuration UtilityTransmission Method Store-And-Forward OTHERS Certification CE, FCC, RoHS Package Content TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber FeetEnvironment Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
