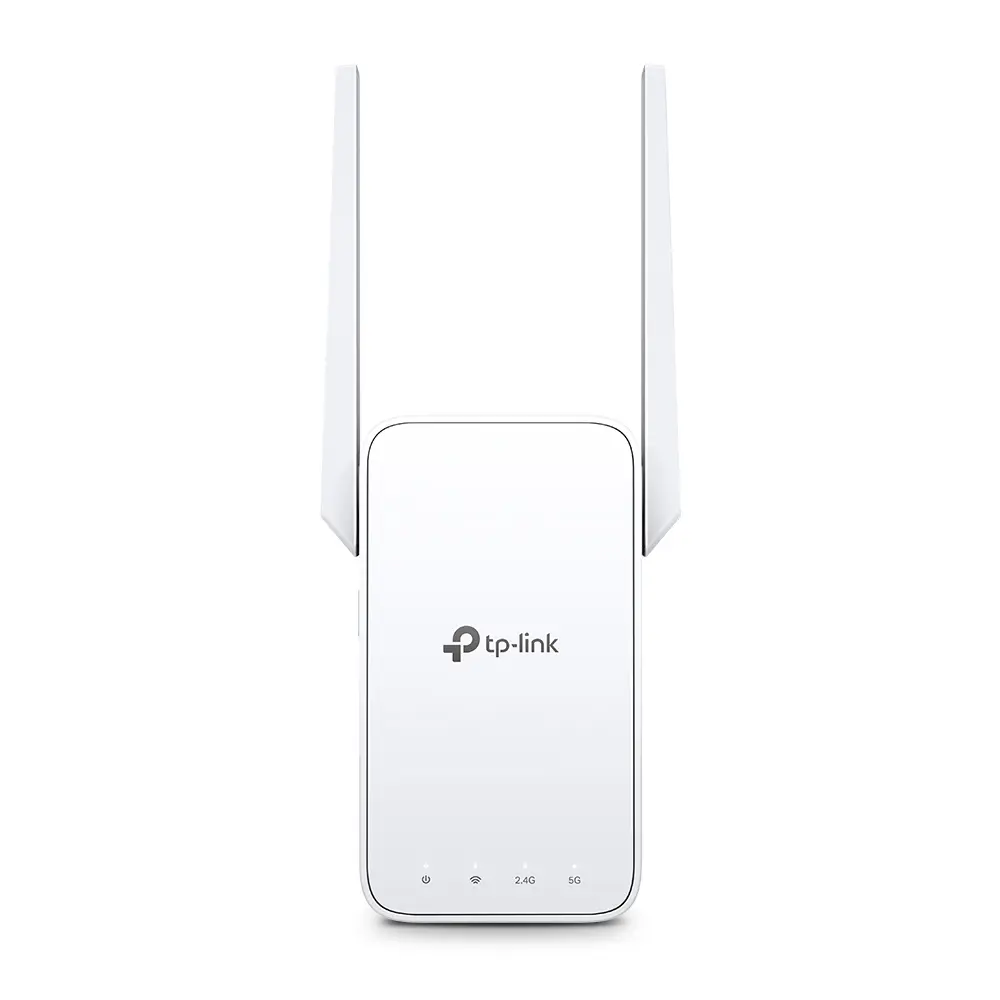

tp-Link AC1200 OneMesh Wi-Fi Range Extender | RE315
- Eliminate weak signal areas with whole home WiFi coverage.
- 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) dual-band WiFi connection ensures more stable wireless experience.†
- Creates a Mesh network by connecting to a TP-Link OneMesh™ router for seamless whole-home coverage.‡
- Adaptive Path Selection – connects to the fastest connection path to the router automatically and runs at top-speed.
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability.
- Smart Signal Indicator - helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
- Push the WPS button to easily connect to the router and you can uniformly manage from the Tether app or Web UI.
- Works with any Wi-Fi router or wireless access point.
WIRELESS Working Modes Range Extender/Access Point HARDWARE FEATURES Interface 1 x 10/100Mbps Ethernet Port (RJ45) Button WPS Button, Reset Button Input Power 100-240V~50/60Hz Max. Power Consumption 9.5W（max power consumption） Dimensions ( W x D x H ) 3.5×1.4×4.9 in. (89×35.0×124.1 mm) Antenna 2 External Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4GHz & 5GHz(11ac) Signal Rate 5 GHz:Up to 867 Mbps
2.4 GHz:Up to 300 MpbsWorking Modes Range Extender/Access Point Reception Sensitivity 5 GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -77dBm
11ac HT20 MCS0: -94dBm, 11ac HT20 MCS8: -71dBm
11ac HT40 MCS0: -92dBm, 11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm
2.4 GHz:
11g 54Mbps: -78dBm, 11n HT20 MCS7: -76dBm
11n HT40 MCS7: -74dBmWireless Modes Range Extender/Access Point Wireless Functions Enable/Disable Wireless Radio, Wireless Statistics Wireless Security 64/128-bit WEP, WPA/WPA2-PSK/WPA2-PSK2 encryptions Transmission Power 2.4 GHz ≤20dBm, 5 GHz ≤30dBm OTHERS Certification CE, RoHS Package Content Wi-Fi Range Extender RE315
Quick Installation GuideSystem Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
